| UPS Manufacturer | ACCULINE |
|---|---|
| UPS Series | TNmax |
| UPS power | From 1 – 20 kVA |
| UPS Phase Type | Single-phase |
● Double conversion with digital control.
● Wide input voltage range: 110~300Vac.
● Wide input frequency range: 40~70Hz.
● Input power factor 0.99 with PFC.
● Output voltage selection: 208/220/230/240Vac.
● Smart charger design for optimized battery performance.
● The maximum charging current can be extended to 12A (long-life unit).
● Emergency Power Off (EPO) function.
● ECO mode for energy saving.
● Generator compatible.
● Self-test during UPS startup.
● Cold start.
● Automatic fan speed adjustment.
● Easy-to-use multi-display LCD screen with user-friendly function menu.

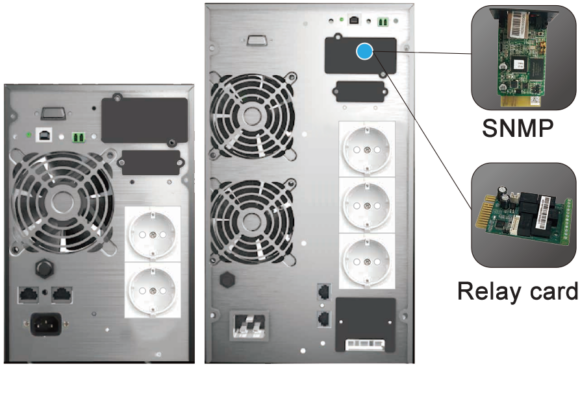

● Multiple communication options: RS232/USB/EPO (SNMP/MODBUS/DRY CONTACT card optional).
● Protection against: short circuit, overload, overheating, battery overcharge, low battery voltage, etc.
(The letter “L” in the model name indicates a UPS without internal batteries and a built-in charger capable of supporting the connection of external batteries for truly long autonomy).
| UPS model | Dimensions (WxDxH) | Weight |
|---|---|---|
| TNmax 1000 | 144 x 293 x 209 mm | 9.1 kg |
| TNmax 1000L | 144 x 293 x 209 mm | 4.1 kg |
| TNmax 2000 | 191 x 460 x 337 mm | 19.5 kg |
| TNmax 2000L | 191 x 460 x 337 mm | 10.3 kg |
| TNmax 3000 | 191 x 460 x 337 mm | 24.5 kg |
| TNmax 3000L | 191 x 460 x 337 mm | 10.3 kg |
