Socomec DIRIS B-30

Category: Multifunction Meters

[:en]

DIRIS B-30 is a modular power monitoring device that communicates wirelessly or via RS485. Its 4 independent RJ12 current inputs allow it to manage multiple types and numbers of circuits: for example, 4 single-phase loads or 1 three-phase load + 1 single-phase load.
DIRIS B-30 is connected to current sensors (RJ12 connection) suitable for all types of installation: solid TE, split TR core and flexible TF current sensors.

[:en]

The DIRIS B-30 is a power monitoring device in a modular format that communicates wirelessly or via RS485. The 4 RJ12 independent current inputs of the device allow it to manage several types and number of circuits: for example, 4 single-phase loads or 1 three-phase load + 1 single-phase load.
The DIRIS B-30 is connected to current sensors (RJ12 connection) that are suitable for all types of installation: solid TE, split-core TR, and flexible TF current sensors.

[:]

Share it:

[:en]

Plug & Play:
A quick RJ12 connection makes wiring easy and reliable and prevents wiring errors. Automatic addressing and product configuration (communication address, load type, current sensor type and ratio) allow you to simplify the application and save time.

Class 0.5 according to IEC 61557-12:
• Class 0.2 for the meter only.
• Class 0.5 from 2% to 120% of the nominal current of the global measurement scale (related to TE / TF current sensors).

Multi-circuit:
• 4 current measurement inputs allow you to configure multiple circuits to optimize the number of measurement devices per installation.

Communication:
• DIRIS B-30 can be connected to:

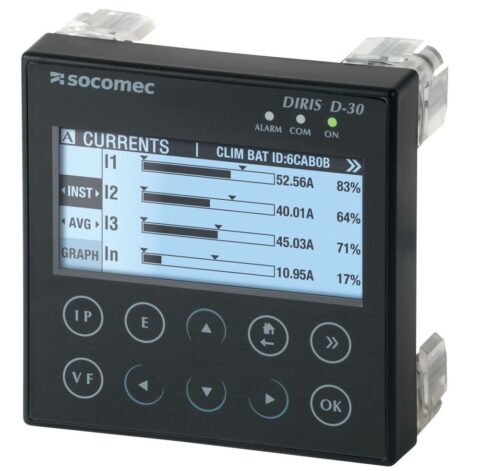

– a DIRIS D-30 remote display for displaying measurement and metering data.
– a DIRIS G gateway (1) for data collection and communication wirelessly or via RS485 and Ethernet.
– Optional communication modules in BACnet IP, BACnet MSTP and PROFIBUS DP protocol. Digital or analog input/output modules can also be connected.

diris_B

[:en]

Plug & Play:
A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors. Automatically addressing and configuring the product (communication address, load type, type and ratio of current sensor) allow you to simplify implementation and to save time.

Class 0.5 in accordance with IEC 61557-12:
• Class 0.2 for the meter alone.
• Class 0.5 from 2% to 120% of nominal current for the global measurement chain (associated with TE/TF current sensors).

Multi-circuit:
• 4 current measurement inputs allow you to configure multiple circuits in order to optimize the number of measurement devices per installation.

Communication:
• The DIRIS B-30 can be connected to:
– a remote DIRIS D-30 screen for displaying measurement and metering data.
– a DIRIS G(1) gateway for centralization and communication of data wirelessly or via RS485 and Ethernet.
– optional modules to communicate in BACnet IP, BACnet MSTP and PROFIBUS DP protocol. Digital or analogue input/output modules can also be connected.

diris_B

[:]

Επιπλέον πληροφορίες

Manufacturer	Socomec
