• Easy to use:

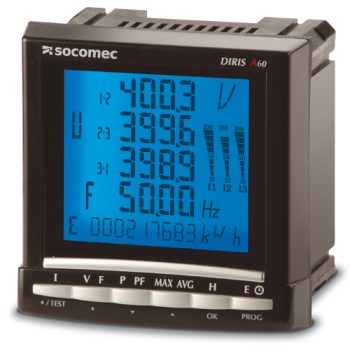

  Thanks to the large illuminated LCD display with multiple display screens with direct key access, the DIRIS A60 provides clear indications and is easy to use. It instantly displays a range of measurements and metrics: +/- kWh, +/- kvarh, kVAh, I, U, V, F, P, Q, S, PF, etc.



• Detects wiring errors:
  A comprehensive test function can be used to detect incorrect wiring and to automatically correct CT installation errors.



• Complies with IEC 61557-12 standard:
  IEC 61557-12 is a high-level standard for all PMDs (Performance Monitoring Devices) designed to measure and monitor electrical parameters in distribution networks. Compliance with IEC 61557-12 ensures a high level of equipment performance in terms of metrology and mechanical and environmental aspects (electromagnetic compatibility, temperature, etc.).



• Management software:
  Optional Ethernet module with Webserver function: For monitoring measurements, data exploitation and remote export of load curves without specific software (Web browser access).



• Analysis software:
  For the analysis of event data in order to improve the reliability of the electrical installation.



• Easy Config Software:
  For quick and easy remote device configuration. Configuration files can be copied from and sent to the DIRIS A60 or can be created without communication and sent later. Multiple devices can be configured from a single file, which is particularly useful for OEMs and chassis manufacturers.



• Compliance with EN 50160 standard:
  EN 50160 is a standard that defines events related to the quality of electrical networks. DIRIS A60 records voltage events according to this standard.

diris_A60


[:en]

• Easy to use:
  Thanks to its large backlit LCD display and its multiple viewing screens with direct key access, the DIRIS A60 provides clear readings and is easy to use. It directly displays a number of multimeasurement and metering values: +/- kWh, +/- kvarh, kVAh, I, U, V, F, P, Q, S, PF, etc.



• Detects wiring errors:
  An integrated test function can be used to detect incorrect wiring and to automatically correct CT installation errors.



• Compliant with IEC 61557-12:
  IEC 61557-12 is a high-level standard for all PMDs (Performance Monitoring Devices) that are designed to measure and monitor electrical parameters in distribution networks. Compliance with IEC 61557-12 ensures a high level of equipment performance, in terms of metrology, and the mechanical and environmental aspects (EMC, temperature, etc.).



• Management software:
  Optional Ethernet module with Webserver function: For measurement monitoring, data exploitation and the export of load curves remotely without a specific software (web browser access).



• Analysis software:
  For the analysis of events data in order to improve the reliability of the electrical installation.



• Easy Config software:
  For quick and easy remote device configuration; configuration files can be copied from and sent to the DIRIS A60, or they can be created without communication and sent at a later time. Multiple devices can be configured from a single file, which is especially useful for OEMs and panel builders.



• Conformity to standard EN 50160:
  EN 50160 is a standard which defines events relating to the quality of electrical networks. The DIRIS A60 captures voltage events in accordance with this standard.
