Features

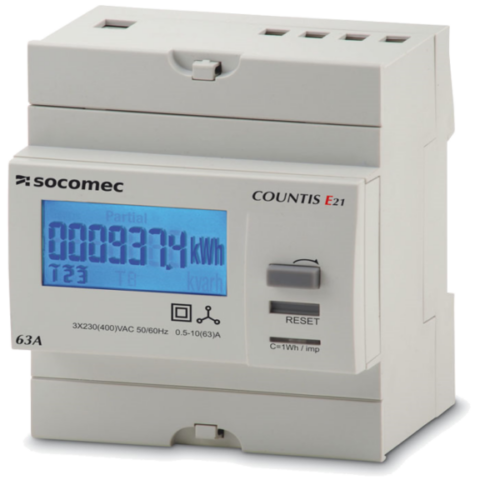

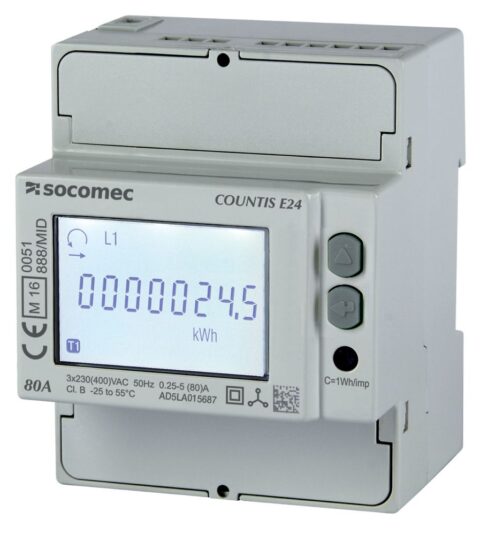

The COUNTIS E2x is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW). It is designed for three-phase networks and allows a direct connection of up to 63/80 A.

ADVANTAGES

• RS485 (MODBUS), M-BUS, Ethernet communication or pulse outputs:
  To easily centralise your consumption, COUNTIS E2x devices have either one pulse output, one RS485 (MODBUS), M-BUS or an Ethernet Modbus TCP communication output. With RS485 communication models, you can configure your meters remotely.



• Multi-tariff:
  Lets you assign different time slots (every hour, dip times) or different sources (normal, back-up) to your energy readings to monitor your energy consumption in more detail.



• Guaranteed connection (E20/21):
  The product is protected against phase/neutral inversion and detects wiring errors. This makes it easier to start up, ensures the device is functioning properly and reduces the cost of the installation.



• MID certified B+D module:
  COUNTIS E units comply with the MID directive to guarantee accuracy and reliability when metering, compulsory for energy billing applications. “Module B+D” certification guarantees that the design and manufacturing process of products are approved by an accredited laboratory.
